ARTICLE | |||
|---|---|---|---|
MANUFACTURER: | PAOLONI | ||
MODEL: | T 270 CL | ||
YEAR: | 2007 | ||
EC STANDARD | |||
PRICE ON REQUEST |
TECHNICAL DATA:

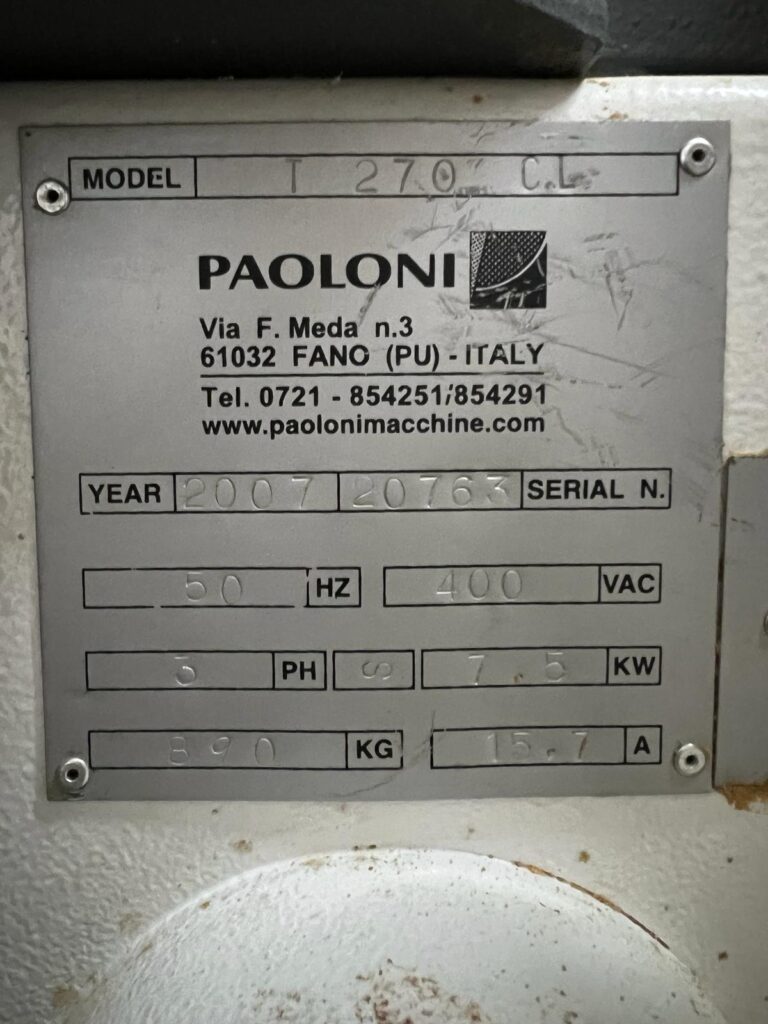

Technical & Electrical specifications
Nominal Motor Power 7.5 kW (10 HP)
Voltage / Current 400 VAC – 50 Hz / 15.7 A
Phase Count 3 ~ PH
Machine Net Weight 890 kg
Spindle Speeds (RPM) 1500 / 3000 / 4500 / 6000 / 8000 / 10000 rpm
Spindle Shaft Tilting Range -45° to +45° (Motorized electronic tilting)
Control System / HMI Overhead swiveling control panel with digital LED displays & keypad for
spindle height and tilt adjustment
Declaration of CE-conformity ✓ CE mark
Working Units / Machine Components

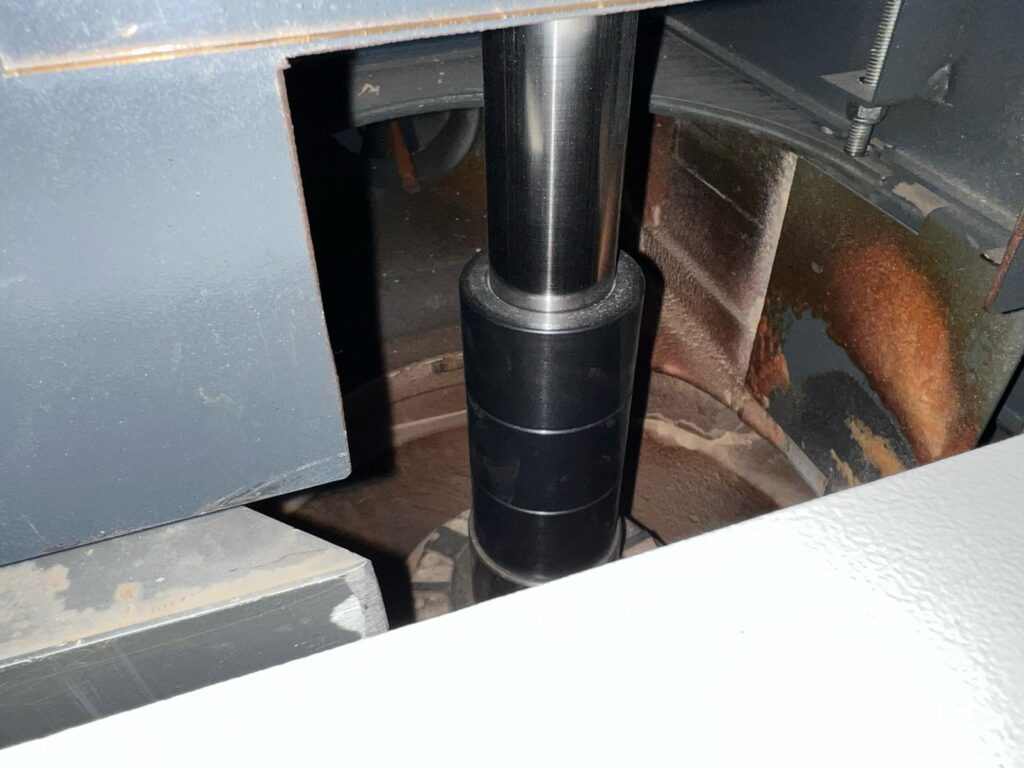

Main Spindle Unit Electro-Motorized Tilting Spindle Shaft
Heavy-duty shaft with vertical motorization and bi-directional tilting (-45° / +45°).
Controlled directly from the overhead programmer panel.
Milling Fence & Guard Adjustable Safety Fence with Extraction Hood
Micro-adjustable fence plates with top pressure clamps, transparent cutter
guard, and integrated dust suction port.
Tenoning Equipment Side Sliding Table & Pneumatic Clamping
Precision sliding carriage with pneumatic hold-down cylinders, workpiece fence,
and angular reference rule for tenoning operations.

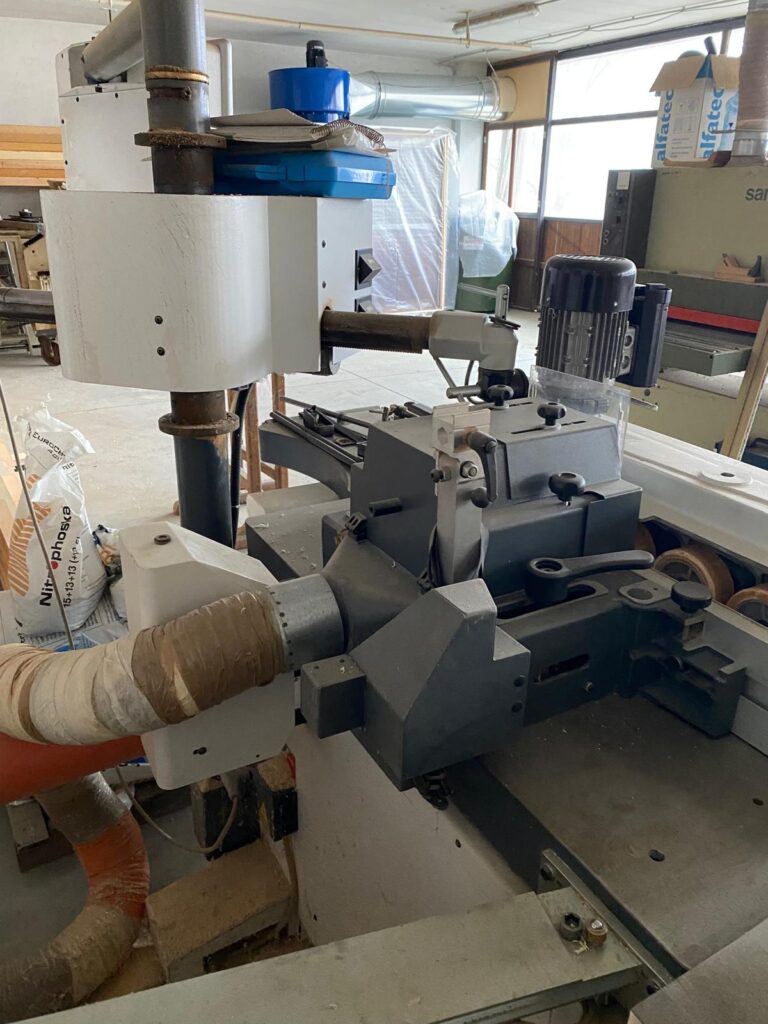

Material Power Feeder Mounted 3/4-Roll Power Feed Unit
Dedicated power feeder mounted on a heavy support column for automatic,
continuous workpiece advancement across the spindle table.

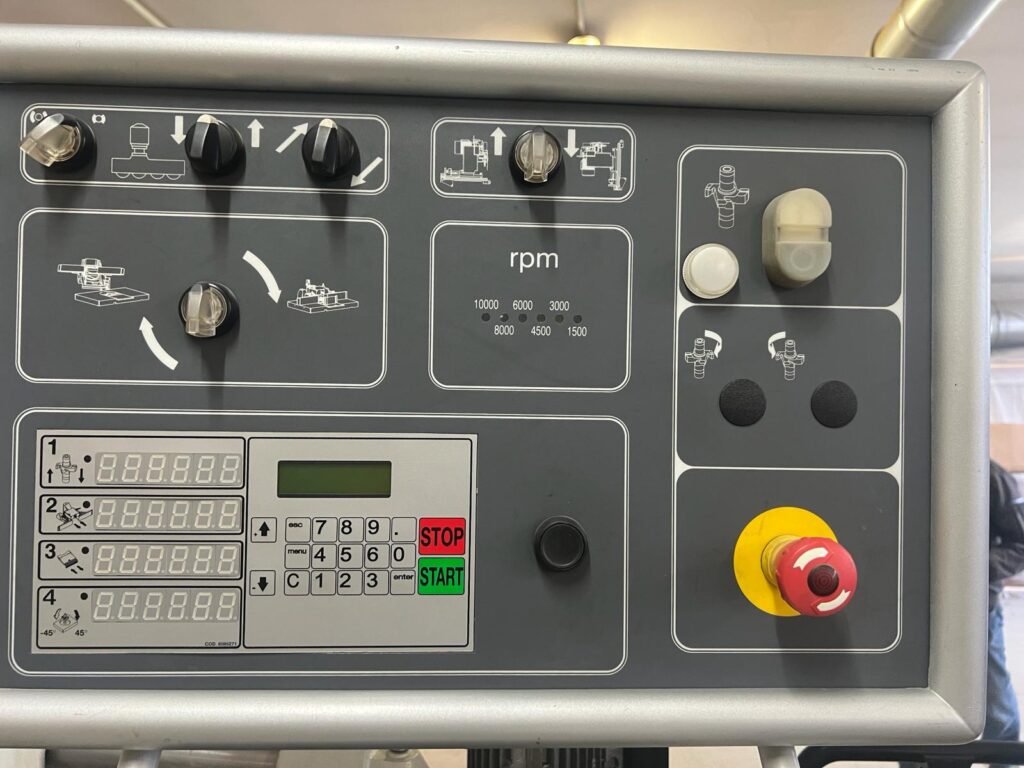

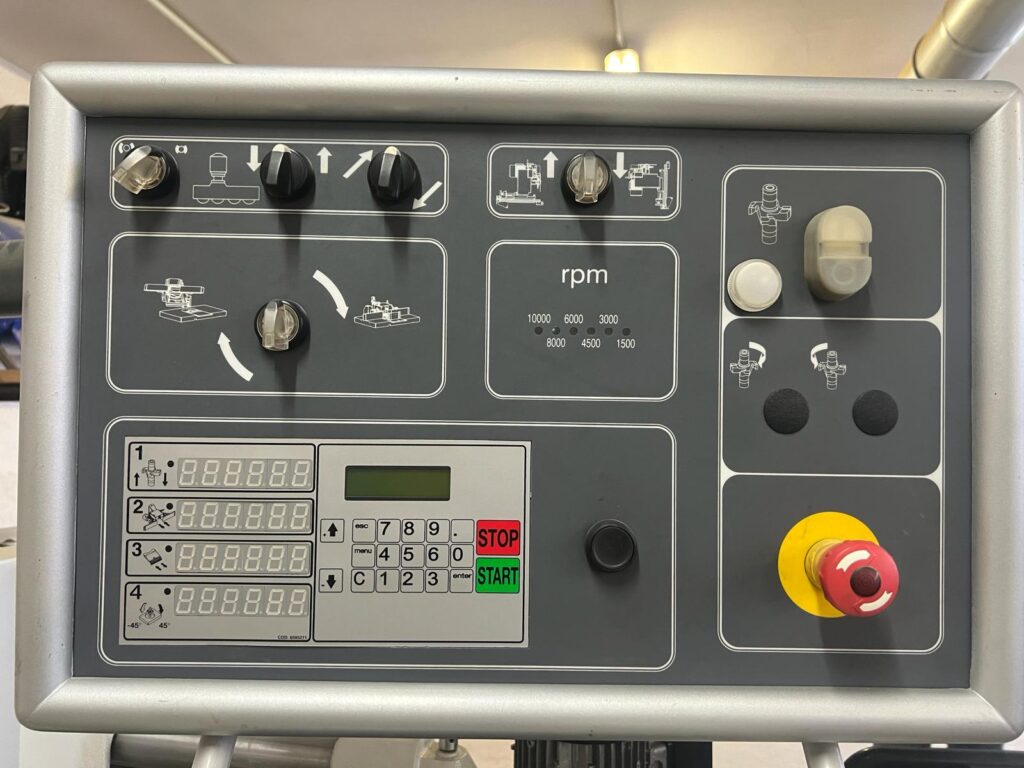

Control Interface Swiveling Overhead Operator Panel
Features electronic position displays, speed indicator selector, main start/stop
pushbuttons, emergency stop button, and mode switch.
